dsh-function-plot
Verified · install-tested on dsh kirineko
What it does
2D teaching plots for DeepSeek Harness
Works — verified, early-stage project
2D teaching plots for DeepSeek Harness It installs cleanly and boots without issues in our testing. It's early-stage but functional.
“Verified” means our automated CI actually ran dsh plugin add in a clean profile and it booted — nothing more. Feature descriptions and version compatibility are the author’s claims. This is not a security audit and not an endorsement of third-party code.
README
dsh-function-plot
DeepSeek Harness 插件：让对话支持函数图像绘制，以及把工作区里的 SVG 显示到 Web 页面。

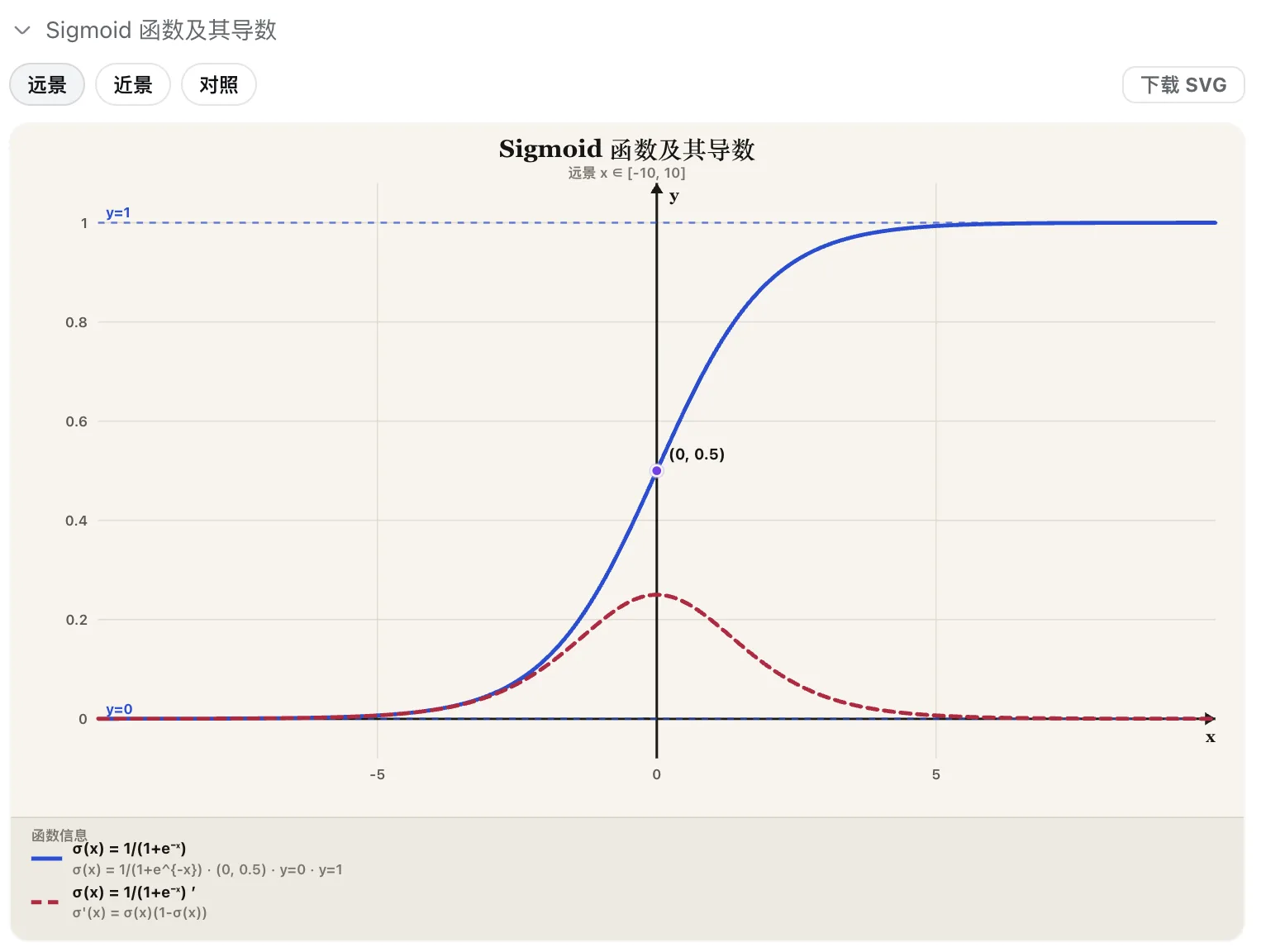

- 画函数：激活函数、分布、课堂曲线；卡片可切换远景 / 近景 / 对照，查看函数信息，下载 SVG
- 显示 SVG：单独把已有图片渲染到对话里，不必经过函数绘图
安装
npm（推荐）
dsh plugin --profile web add dsh-function-plot
dsh web
源码
git clone https://github.com/kirineko/dsh-function-plot.git
cd dsh-function-plot
pnpm install
pnpm build
dsh plugin --profile web add "$(pwd)"
pnpm ≥10 若 add 失败，写入 ~/.dsh/profiles/web/pnpm-workspace.yaml 后重试：
allowBuilds:
dsh-function-plot: true
使用
| 目的 | 说法 |
|---|---|
| 画函数 | 画 sigmoid；对比 ReLU 和 GELU；画 y = x^2 / 2 |
| 显示已有 SVG | 把 figures/arch.svg 显示在对话里 |
- 标准模式：独立卡片
- PTC：
run_code下的嵌套卡片 - 文件：
.dsh-plots/*.svg
卸载
dsh plugin --profile web remove dsh-function-plot
配置（可选）
默认即可使用，一般不用改。只有要换输出目录、采样数、画布或主题时，才编辑 ~/.dsh/profiles/web/cordis.patch.yml：
- id: function-plot
name: dsh-function-plot
config:
outputDir: .dsh-plots
samples: 400
width: 960
height: 540
theme: light
Install
Install the catalog once, then DeepSeek Harness can find and install any plugin from this site automatically:
dsh plugin add dshbase-catalogThen say "install dsh-function-plot for me" — your agent finds it in the directory and installs it. Docs: dshbase-catalog · verified packs.
This plugin is GitHub source (not published to npm) — install it straight from the repo:
Web profile:
dsh plugin --profile web add github:kirineko/dsh-function-plotHeadless (CLI) profile:
dsh plugin --profile headless add github:kirineko/dsh-function-plotTest report
Verified: L1 install + L2 load + L3 runtime from GitHub source on dsh 0.1.0-rc.6.
